Description:

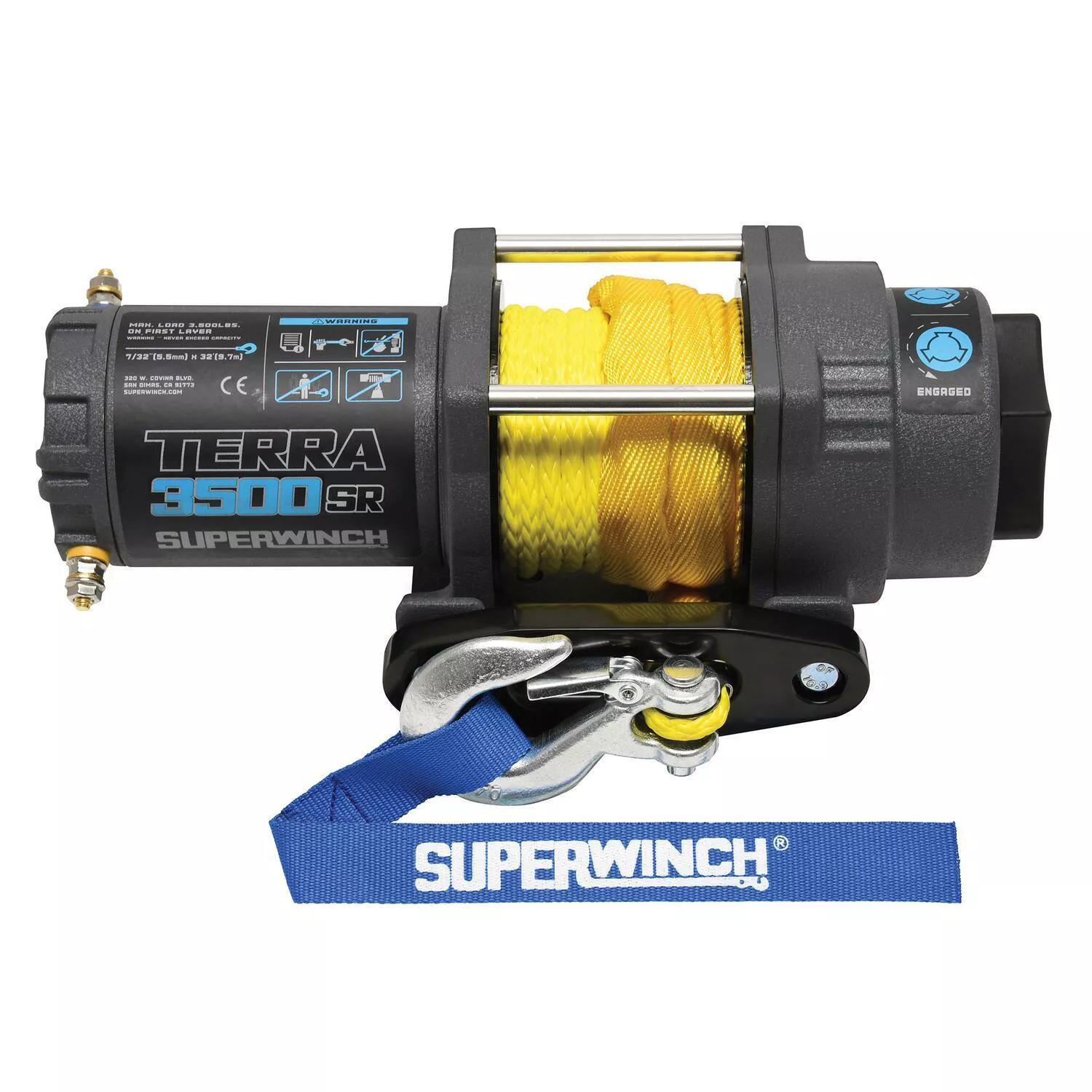

Superwinch Terra Series 3500 lbs winch (MPN 1135270) engineered for ATV and UTV use with synthetic rope option, redesigned motor, all-steel gearing, steel drum, remotely mountable control box with sealed solenoid, 10′ remote and handlebar switch, IP67 water/dust protection, and ergonomic freespool control for reliable off-road performance.
Features:
- 3,500 lbs capacity
- 7/32 in. – 32 ft. synthetic rope
- Heavy-duty, clevis pinned, latched hook
- Aluminum hawse fairlead (synthetic rope)
- Narrow drum allows easier mounting in tight spaces
- 10′ handheld remote with handlebar rocker switch
- Universal mounting plate
- Mounting bolt pattern 3″ x 4.87″
- Gray wrinkle powder coat finish
- 1.6 HP permanent magnetic motor
- Clockable motor
- 3-Stage planetary gearing with 198:1 ratio
- Heavy-duty steel drum
- All steel gear set
- Sealed solenoid with circuit breaker
- Easy to engage ergonomic freespool control knob
- IP67 protection from water and dust
Technical Details
- Mfg
- 1135270
- SKU
- WS-1135270
- GTIN
- 00022705005609
- Weight
- 24 lbs.
- Dimensions
- 16 × 10 × 9 inches
- Color
- Textured Gray
