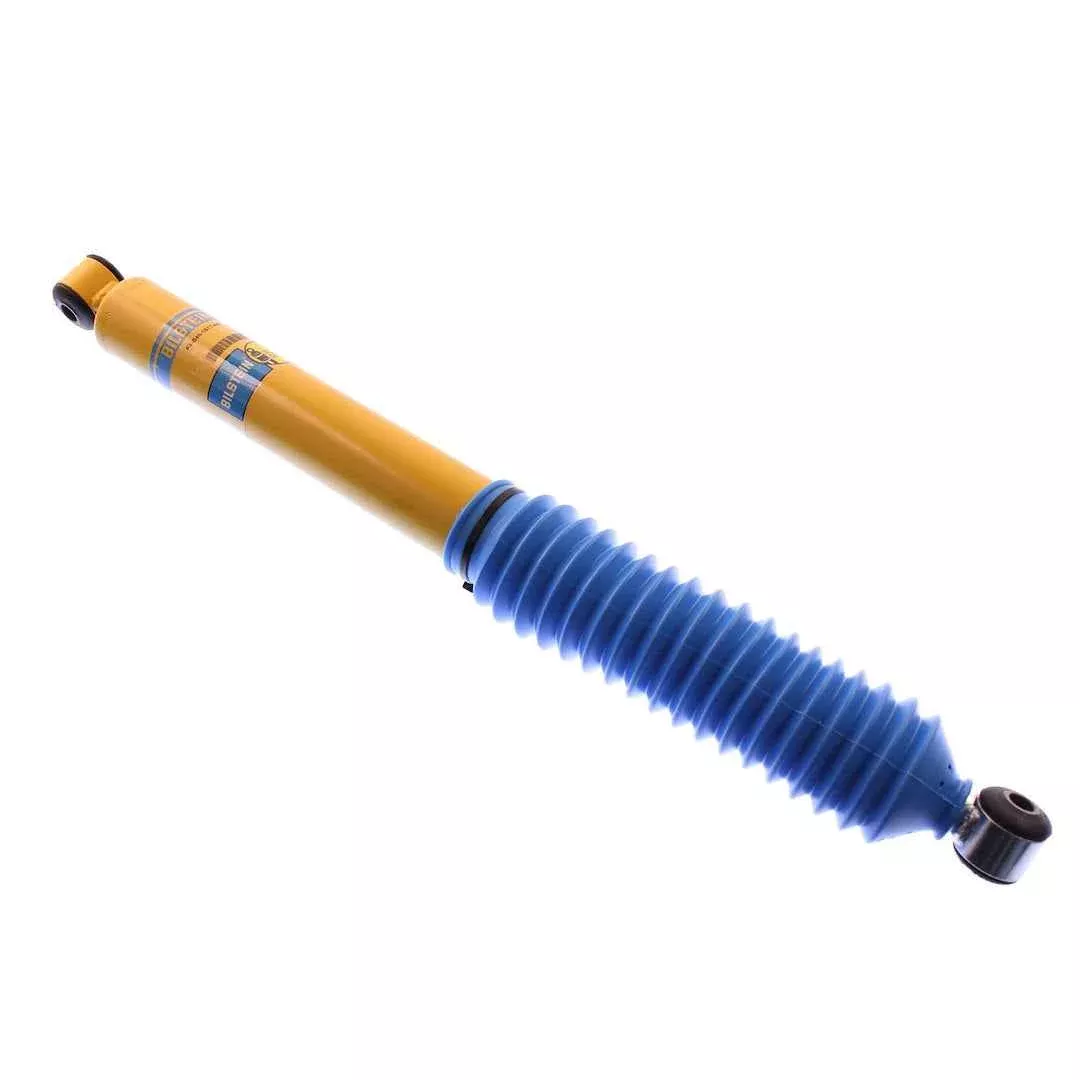

A nitrogen-gas-charged monotube shock absorber for the vehicle applications shown below — Bilstein part 24-016179.
- It measures 22.68 in extended and 14.21 in compressed, with eyelet upper and eyelet lower mounts.
- Supplied as a single shock, it should be matched to the required suspension position and fitment details.
Key Features
- Marked Improvement in Safety and Performance without Additional Spring Changes.
- Bilstein Gas Pressure Technology.
- Bilstein Monotube/Upside Down Technology.
- Road and Track Tested by Bilstein for Fine Tuning.
- Limited Lifetime Warranty.
Specifications
| Type | Nitrogen Gas Charged |
|---|---|
| With Coil Spring | No |
| Internal Design | Monotube |
| Adjustable | No |
| Upper Mounting Style | Eyelet |
| Lower Mounting Style | Eyelet |
| Body Color | Yellow |
| Quantity | Single |
| Valving Type | Deflective Disc Valving |
| Rod Finish | Polished |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Extended Length (IN) | 22.68 in |
| Compressed Length (IN) | 14.21 in |
| Rod Diameter (IN) | 0.55 in |
Vehicle Applications
- 1991 Ford F-250
- 1992 Ford F-250
- 1993 Ford F-250
- 1994 Ford F-250
- 1995 Ford F-250
- 1996 Ford F-250
- 1991 Ford F-350
- 1992 Ford F-350
- 1993 Ford F-350
- 1994 Ford F-350
- 1995 Ford F-350
- 1996 Ford F-350
- 1997 Ford F-350
- 1997 Ford F-250 HD
Package Contents & Exclusions
| Includes Dust Shield | No |
|---|---|
| Includes Hardware | No |
| Includes Boot | Yes |
Part Identification
| Brand | Bilstein |
|---|---|
| Manufacturer Part Number | 24-016179 |
Installation Notes
| Estimated Install Time (Hours) | 0.5 |
|---|
