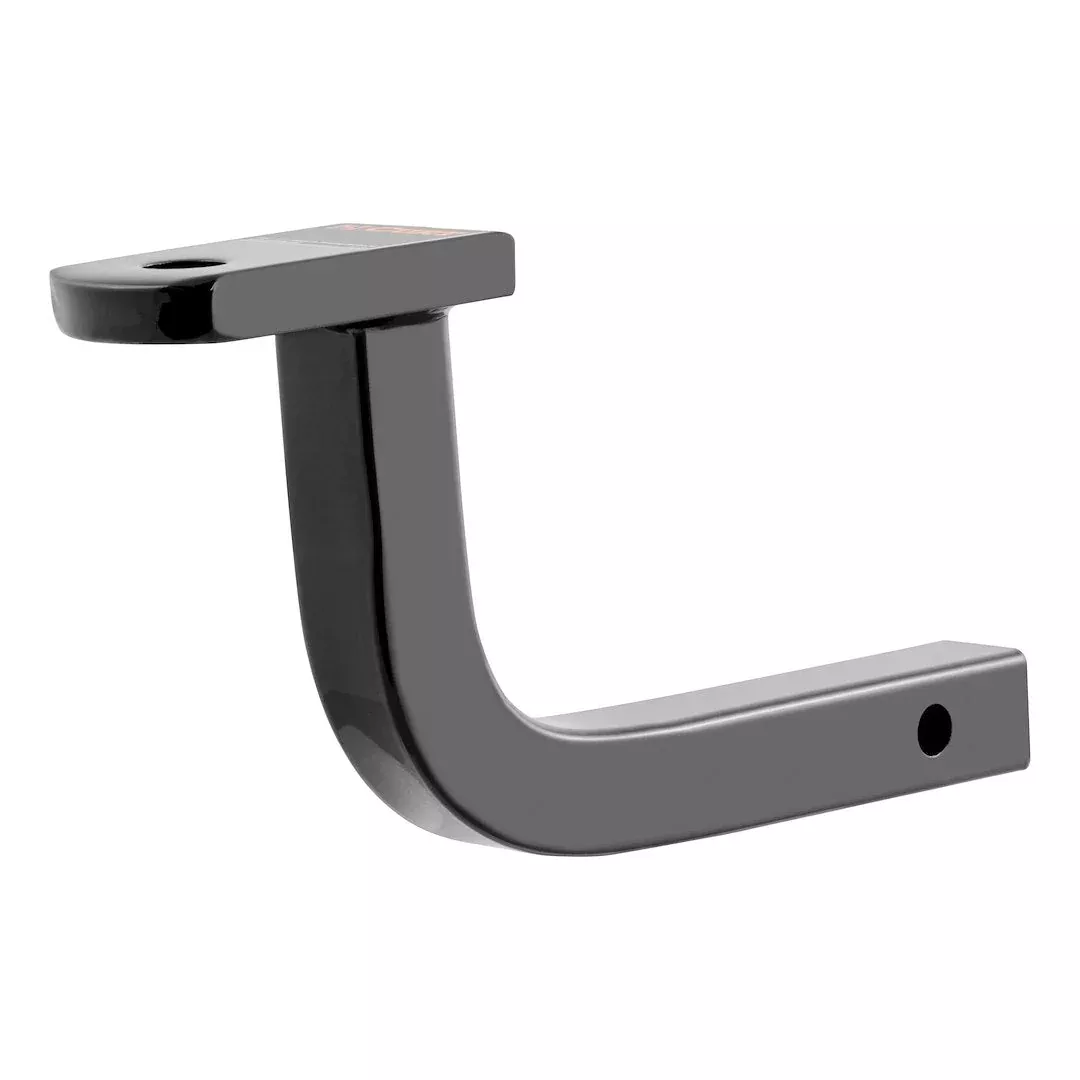

CURT 45014 positions a trailer ball on a 1-1/4 in hitch receiver. The mount provides 0 in of drop and 5 in of rise, with listed gross trailer ratings of 3,500 lb. A hitch ball is not included; use the rating for the mounting orientation and the lowest-rated towing component.
Specifications
| Brand | CURT |
| Manufacturer Part Number | 45014 |
| Class | II |
| Gross Trailer Weight | 3500 lb |
| Tongue Weight | 350 lb |
| Rise | 5 in |
| Hitch Ball Count | Without Hitch Ball |
| Hitch Ball Size | Without Hitch Ball |
| Color/ Finish | Black Powder Coated |
| Material | Steel |
| With Hitch Pin | No |
| Shank Type | Solid |
| Swivels | No |
| Hitch Ball Hole Size | 3/4 in |
| Manufacturer Product Name | Class 2 Ball Mount (1-1/4″ Shank, 3,500 lbs., 5″ Rise, 9-5/8″ Long) |
Dimensions
| Receiver Size | 1-1/4 in |
| Drop | 0 in |
| Shank Length | 9-5/8 in |
| Adjustable Ball Height | No |
Key Features
- Manufacturer Product Name: Class 2 Ball Mount (1-1/4″ Shank, 3,500 lbs., 5″ Rise, 9-5/8″ Long).
- Gross Trailer Weight: 3500 lb.
- Tongue Weight: 350 lb.
- Drop: 0 in.
- Rise: 5 in.
