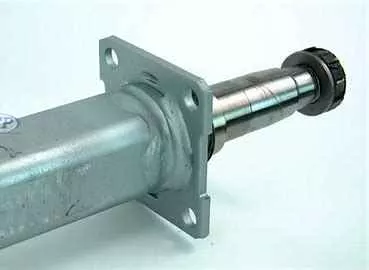

Dexter Marine 49550 replaces a straight-spindle trailer axle beam rated at 3,500 lb. It has a 73-1/4 in hub-face dimension and 57-3/4 in to 61-3/4 in spring-center spacing. Springs are not included; match both measurements to the trailer.
Specifications
| Brand |
Dexter Marine |
| Manufacturer Part Number |
49550 |
| Capacity (LB) |
3500 lb |
| Suspension Type |
Leaf Spring |
| Axle Type |
Beam Only |
| Hub Face |
73-1/4 in |
| Spindle Location |
Straight |
| Mount Location |
57-3/4 in To 61-3/4 in Length Spring Center To Spring Center |
| Spring Detail |
No Spring |
| Lubrication |
Super Lube System |
| Includes Castle Nuts |
Yes |
| Tube Type |
Square |
| Includes Washers |
Yes |
| Manufacturer Product Name |
Trailer Axle |
Dimensions
Key Features
- Manufacturer Product Name: Trailer Axle.
- Capacity (LB): 3500 lb.
