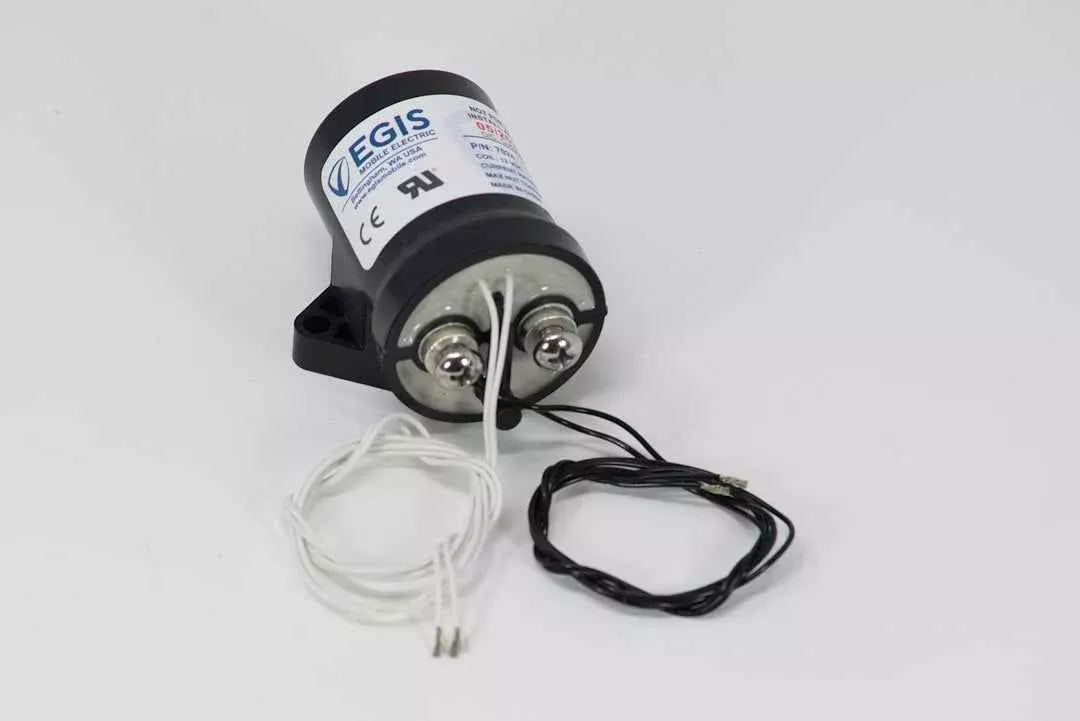

Egis 7024 switches a compatible electrical circuit through a normally open SPST contactor. The side-mounted unit has a 100-amp continuous rating, an 8-to-16V operating range and auxiliary contacts; compare the control and load connections.
Specifications
| Brand | Egis |
| Manufacturer Part Number | 7024 |
| Operating Temperature | -40 To 185 Degree Fahrenheit |
| Ampere Rating At 24 Volts | 0.25 Amp |
| Ampere Rating At 12 Volts | 0.46 Amp |
| Continuous Ampere Rating (A) | 100 Amp |
| Electrical Endurance Rating (Cycles) | 100000 Cycle |
| Power Rating | 5.5 Watt |
| Voltage Rating | 8 To 16 Volt |
| Color | Black |
| Terminal Material | Copper |
| Waterproof Rating | IP67 Rated |
| Certification | ISO-8846/ UL 1500 Standards/ CE Approved |
| Terminal Type | M5-0.8 Stud |
| Housing Material | Nylon |
| Mounting Type | Side Mount |
| Contact Configuration | Single Pole Single Throw Normally Open(SPST-NO) |
| With Auxiliary Contacts | Yes |
Key Features
- Voltage: 8 To 16 Volt.
- Continuous Ampere Rating (A): 100 Amp.
- Color: Black.
- Mounting style: Side Mount.
Compatibility
| Universality | Semi-Universal |
