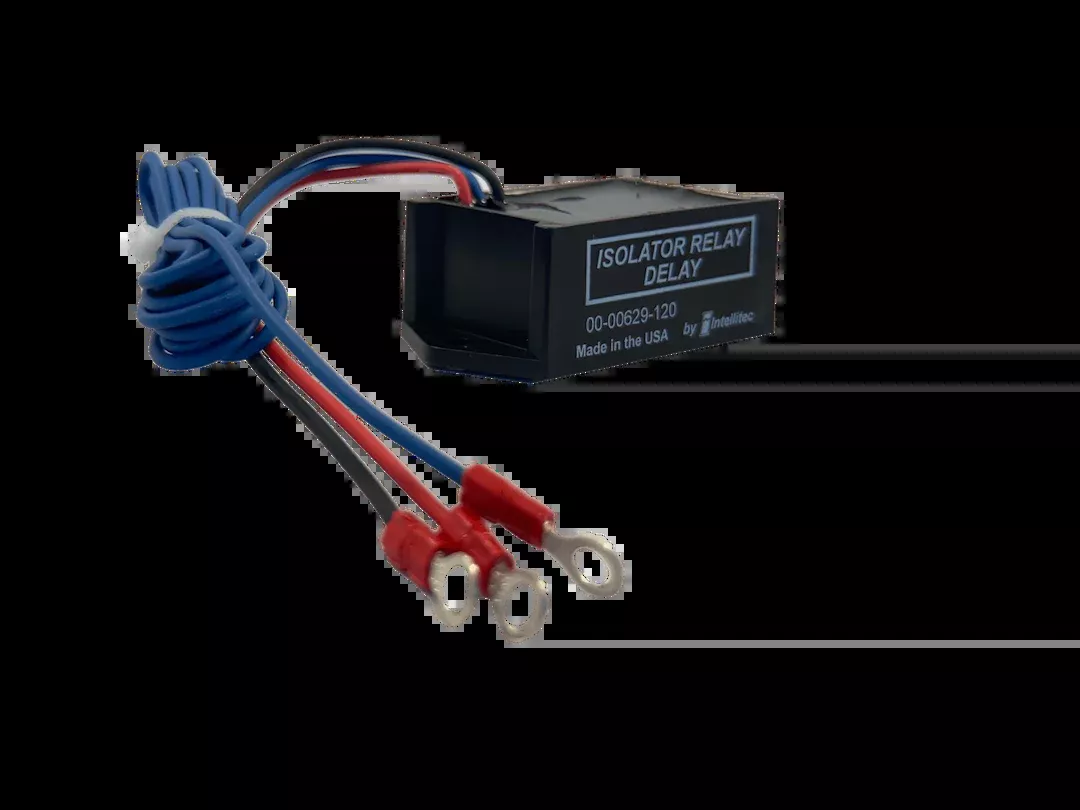

Intellitec 00-00629-120 delays isolator-relay operation when the coach starts. The listed voltage range is 12 Volts; compare the relay and control wiring before replacement.
Specifications
| Brand | Intellitec |
| Manufacturer Part Number | 00-00629-120 |
| Voltage Rating | 12 Volts |
Key Features
- Bi-Directional Isolator Relay Delay Offers a New Approach to Charging Batteries in an RV Application.
- Unlike diode isolators, this system provides an engine driven alternator with the opportunity to begin charging the main battery before connecting the auxiliary battery.
- Allows the Use of Self-Exciting Alternators and Lets the Engine Briefly Warm Up Prior to Placing the Load of a Heavily Discharged Auxiliary Battery on the Alternator.
- Fully Encapsulated in a Plastic Enclosure for Mounting in the Engine Compartment with Two Screws.
- Operates in Combination with a Conventional Continuous Duty Cycle Isolator Relay That Has Been Used by a Number of Vehicle Manufacturers.
- Limited 90 Day Warranty.
- The unit is available in both 12 and 24 Volt versions.
- It operates by sensing the voltage on the main 12 Volt system.
- When this voltage goes above 13.3 Volts for approximately 12 seconds, as happens when the engine is running normally (normal alternator output voltage is approximately 14.4 Volts), it will close the isolator relay providing charging current to the auxiliary battery.
Compatibility
| Used For | Delays The Function Of The Isolator Relay When The Coach Is Started |
