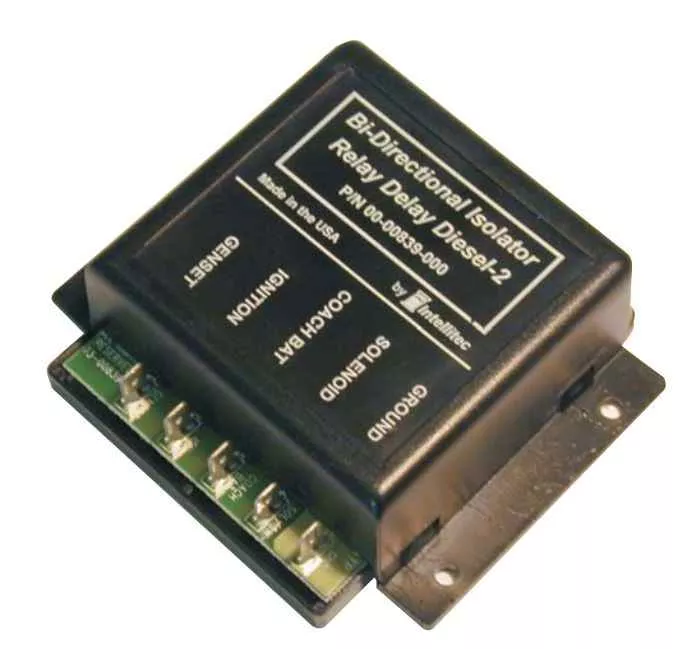

Intellitec 00-00839-000 delays isolator-relay operation when the coach starts. The listed voltage range is 12 Volts; compare the relay and control wiring before replacement.
Specifications
| Brand | Intellitec |
| Manufacturer Part Number | 00-00839-000 |
| Voltage Rating | 12 Volts |
Key Features
- Senses Voltage on the Coach and Chassis Batteries.
- Operates in Two Directions, Charging the Batteries from the Engine Alternator and Charging the Batteries from the Converter.
- Housed in a Plastic Enclosure Suitable for Mounting Under the Hood, Out of Direct Water Spray.
- Limited 90 Day Warranty.
- It provides a method of charging the coach battery from the engine alternator and charges the chassis battery from the converter when the coach is plugged into shore power.
- If the generator is running, the isolator is prevented from pulling in to prevent the generator and converter from operating the chassis functions which might over-load the converter.
- It operates in combination with a continuous duty solenoid to connect the two batteries at the proper times for charging.
- If the voltage on either one is above 13.3 volts, indicating the battery is being charged, it closes the isolator relay, paralleling the batteries, charging both.
Compatibility
| Used For | Delays The Function Of The Isolator Relay When The Coach Is Started |
