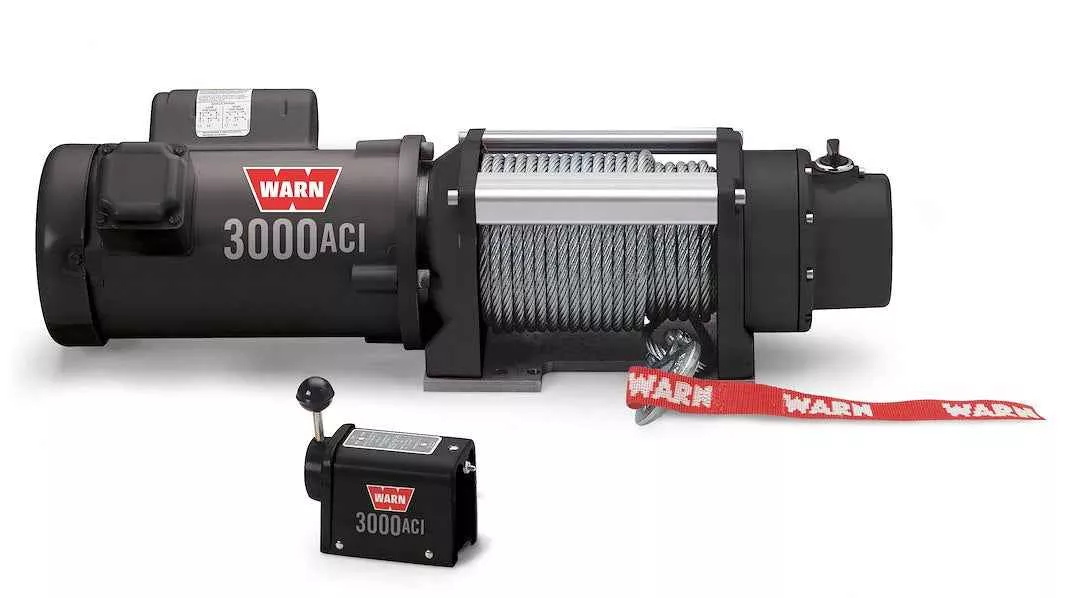

A 115/230V winch with a listed 3000 lb rating — Warn part 93000.
- It has 100 ft of steel line.
- Match the installation, power or drive requirements and load conditions before use.
Key Features
- With 3,000 lb Pulling Capacity.
- TEFC Induction AC Motor for a Long Duty Cycle.
- Limited 1 Year Warranty.
- The 3000 ACI just what you need when you need a heavy-hauling AC powered winch.
Specifications
| Winch Rating | 3000 lb |
|---|---|
| Type | Electric |
| Operation Type | Electric |
| Mount Type | Fixed Mount |
| Voltage | 115/ 230 Volt |
| Motor Horsepower | 0.7 Horsepower |
| Thermal Shutoff | No |
| Gear Reduction Ratio | 9.0006944444 |
| Free Spooling | No |
| Line Material | Steel |
| Fairlead Type | No Fairlead |
| Remote Type | Wired |
| Brake Type | Dynamic And Mechanical Braking |
| Color | Gray |
| Mounting Pattern Size | 4 in Length X 4-1/2 in Width |
| Max Amp Draw | 20 Amp Draw At 3000 lb |
| Line Speed At Max Pull | 8.1 ft Per Minute At 3000 lb |
| Electrical Control Type | Remote Solenoid |
| Motor Type | TEFC Induction |
| Drive Gear Type | Planetary |
| Mounting Hole Quantity | 4 |
| Line Length (FT) | 100 ft |
| Line Diameter (IN) | 5/16 in |
Fitment & Compatibility
| Recommended Use | Industrial |
|---|
Package Contents & Exclusions
| Includes Mounting Hardware | Yes |
|---|
Part Identification
| Brand | Warn |
|---|---|
| Manufacturer Part Number | 93000 |
Installation Notes
| Estimated Install Time (Hours) | 2 |
|---|
