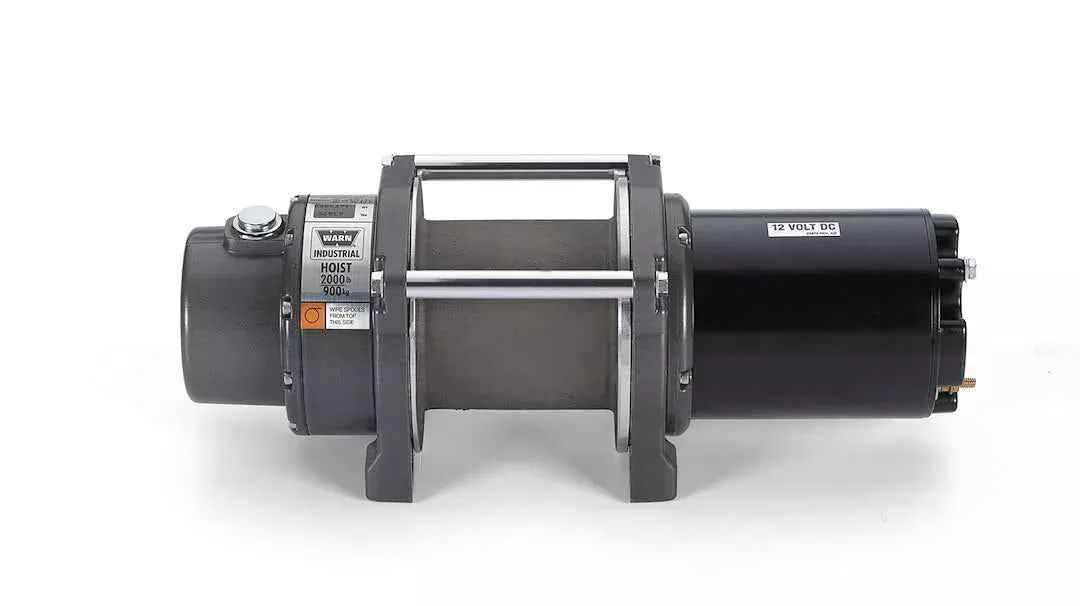

A 12V hoist with a listed 2000 lb rating — Warn part 63899.
- Rope is separate.
- Match the installation, power or drive requirements and load conditions before use.
- Check the complete hoist configuration for the intended lift.
Key Features
- The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and the proven 3-stage all metal geartrain.
- Proven 3-Stage Planetary Gear Train.
- Permanent Grease Lubrication.
- Automatic Cone Brake That Holds Full Rated Load.
- Compact Midsize Frame with Integrated Tie Bars for Easy Installation.
- Limited 1 Year Warranty.
- All WARN hoists incorporate an automatic mechanical brake that holds full rated load.
- A powder-coated finish protects against weather exposure.
Specifications
| Winch Rating | 2000 lb |
|---|---|
| Type | Electric |
| Mount Type | Fixed Mount |
| Voltage | 12 Volt |
| Thermal Shutoff | No |
| Gear Reduction Ratio | 10.875694444 |
| Free Spooling | Yes |
| Operation Type | Power |
| Line Material | No Rope |
| Fairlead Type | No Fairlead |
| Remote Type | Not Applicable |
| Brake Type | Automatic Cone |
| Color | Black |
| Mounting Pattern Size | 6 in Length X 4-1/2 in Width |
| Max Amp Draw | 107 Amp Draw At 2000 lb |
| Line Speed At Max Pull | 12.4 ft Per Minute At 2000 lb |
| Motor Type | Permanent Magnet |
| Drive Gear Type | Planetary |
| Mounting Hole Quantity | 4 |
| Drum Material | Aluminum |
| Line Length (FT) | No Rope |
| Line Diameter (IN) | No Rope |
Fitment & Compatibility
| Recommended Use | Industrial |
|---|
Package Contents & Exclusions
| Includes Mounting Hardware | No |
|---|
Part Identification
| Brand | Warn |
|---|---|
| Manufacturer Part Number | 63899 |
Installation Notes
| Estimated Install Time (Hours) | 2 |
|---|
