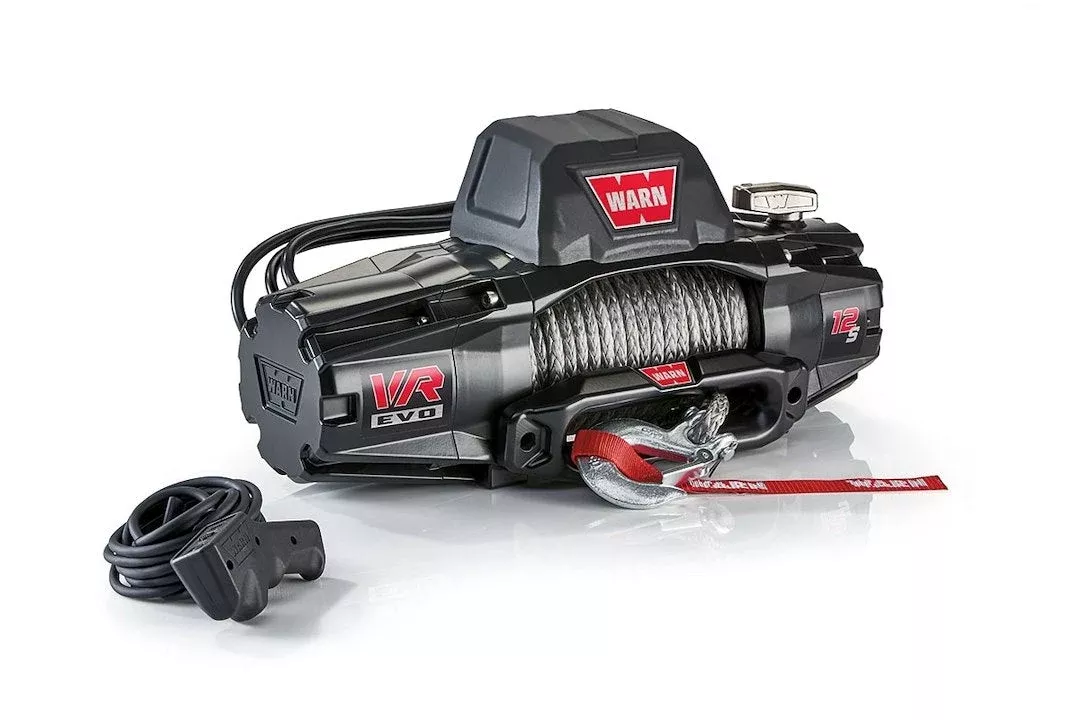

A 12V winch with a listed 12000 lb rating — Warn part 103255.
- It has 90 ft of synthetic line.
- Match the installation, power or drive requirements and load conditions before use.
Key Features
- Black Tactical Look Puts You at the Head of the Off-Road Pack.
- Waterproof Albright® Contactor Control for the Ultimate in Reliability.
- One-Piece Tie Plate Replaces Tie Rods for Added Strength and Rigidity.
- Convertible Control Pack Allows Upright or Low-Profile Winch Mounting.
- Powerful, Efficient Series-Wound Motor.
- A load-holding cone brake controls the load.
- Limited 7 Year Warranty.
- The convertible control pack can mount upright or in a low-profile arrangement.
- A waterproof Albright® contactor provides the most reliable winch control available.
- The VR12-S has a listed 12,000 lb pulling capacity. Match it to the vehicle and recovery load.
Specifications
| Winch Rating |
12000 lb |
| Type |
Electric |
| Operation Type |
Electric |
| Mount Type |
Fixed Mount |
| Voltage |
12 Volt |
| Thermal Shutoff |
No |
| Gear Reduction Ratio |
9.7506944444 |
| Free Spooling |
Yes |
| Line Material |
Synthetic |
| Fairlead Type |
Hawse |
| Remote Type |
Wired |
| Brake Type |
Spring Applied Disc |
| Color |
Black |
| Mounting Pattern Size |
10 in Length X 4-1/2 in Width |
| Max Amp Draw |
396 Amp Per 12000 lb |
| Line Speed At Max Pull |
4 ft Per Minute At 12000 lb |
| Electrical Control Type |
Contactors |
| Motor Type |
Series Wound |
| Drive Gear Type |
Planetary |
| Mounting Hole Quantity |
4 |
| Drum Material |
Steel |
| Line Length (FT) |
90 ft |
| Line Diameter (IN) |
3/8 in |
Fitment & Compatibility
Package Contents & Exclusions
| Includes Mounting Hardware |
Yes |
Part Identification
| Brand |
Warn |
| Manufacturer Part Number |
103255 |
Installation Notes
| Estimated Install Time (Hours) |
2 |
