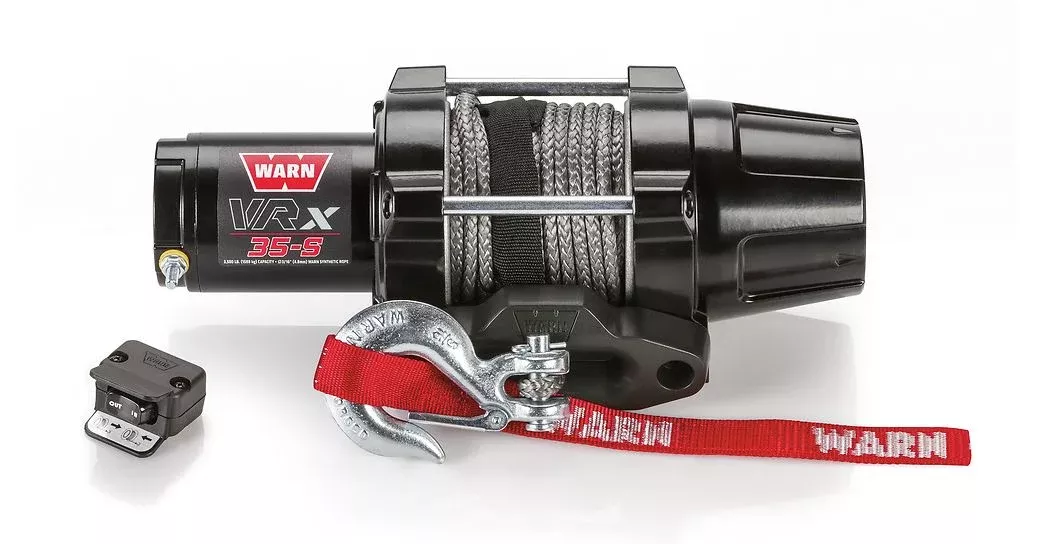

A 12V winch with a listed 3500 lb rating — Warn part 101030.
- It has 50 ft of synthetic line.
- Match the installation, power or drive requirements and load conditions before use.
Key Features
- All-metal, three-stage gear train.
- Full Sealing to Keep Water and the Elements Out.
- Hook, Tie Rods, and Body Feature Attractive, Durable Corrosion-Resistant Black Finish.
- Easy-To-Turn, Short-Throw Clutch Handle Is Easy to Operate, Even When Wearing Gloves.
- Limited Lifetime Mechanical Warranty and Limited 3 Year Electrical Warranty.
Specifications
| Winch Rating |
3500 lb |
| Type |
Electric |
| Operation Type |
Electric |
| Mount Type |
Fixed Mount |
| Voltage |
12 Volt |
| Thermal Shutoff |
No |
| Free Spooling |
No |
| Line Material |
Synthetic |
| Fairlead Type |
Hawse |
| Remote Type |
Wired |
| Brake Type |
Mechanical Cone |
| Color |
Black/ Silver |
| Mounting Pattern Size |
4.9 in Length X 3 in Width |
| Max Amp Draw |
192 Amp Draw 3500 lb |
| Line Speed At Max Pull |
4 ft Per Minute At 3500 lb |
| Electrical Control Type |
Handlebar Mounted Rocker Switch |
| Motor Type |
Permanent Magnet |
| Drive Gear Type |
Planetary |
| Mounting Hole Quantity |
4 |
| Drum Material |
Metal |
| Line Length (FT) |
50 ft |
| Line Diameter (IN) |
3/16 in |
Fitment & Compatibility
Package Contents & Exclusions
| Includes Mounting Hardware |
No |
Part Identification
| Brand |
Warn |
| Manufacturer Part Number |
101030 |
Installation Notes
| Estimated Install Time (Hours) |
2 |
