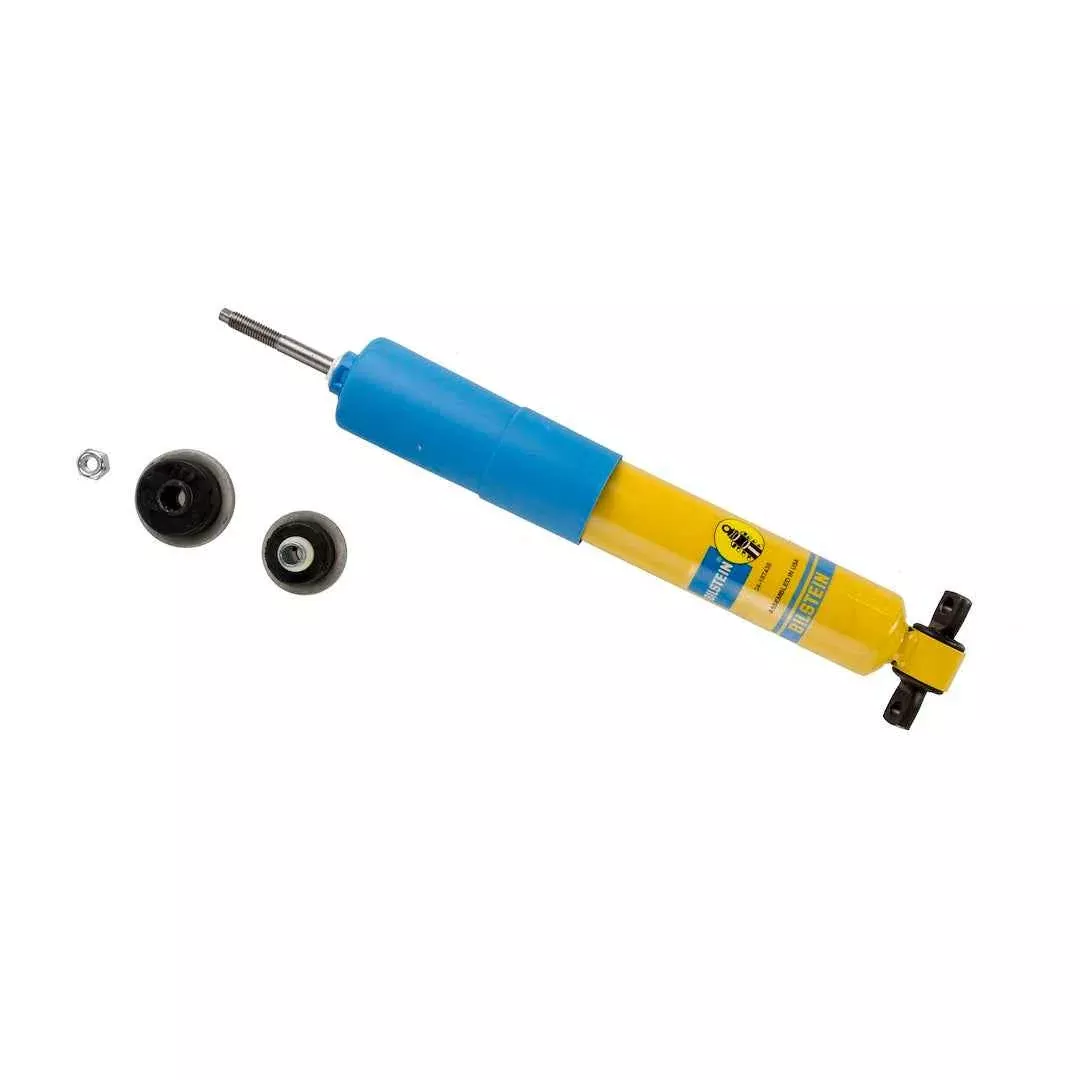

A nitrogen-gas-charged monotube shock absorber for the vehicle applications shown below — Bilstein part 24-187435.
- It measures 14.43 in extended and 9.92 in compressed, with stud upper and cross pin lower mounts.
- Supplied as a single shock, it should be matched to the required suspension position and fitment details.
Key Features
- Marked Improvement in Safety and Performance without Additional Spring Changes.
- Bilstein Gas Pressure Technology.
- Bilstein Monotube/Upside Down Technology.
- Road and Track Tested by Bilstein for Fine Tuning.
- Limited Lifetime Warranty.
Specifications
| Type | Nitrogen Gas Charged |
|---|---|
| With Coil Spring | No |
| Internal Design | Monotube |
| Adjustable | No |
| Upper Mounting Style | Stud |
| Lower Mounting Style | Cross Pin |
| Body Color | Yellow |
| Quantity | Single |
| Valving Type | Deflective Disc Valving |
| Rod Finish | Polished |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Extended Length (IN) | 14.43 in |
| Compressed Length (IN) | 9.92 in |
| Rod Diameter (IN) | 0.55 in |
Vehicle Applications
- 2003 Chevrolet Express 2500
- 2004 Chevrolet Express 2500
- 2005 Chevrolet Express 2500
- 2006 Chevrolet Express 2500
- 2007 Chevrolet Express 2500
- 2008 Chevrolet Express 2500
- 2009 Chevrolet Express 2500
- 2010 Chevrolet Express 2500
- 2003 Chevrolet Express 3500
- 2004 Chevrolet Express 3500
- 2005 Chevrolet Express 3500
- 2006 Chevrolet Express 3500
- 2007 Chevrolet Express 3500
- 2008 Chevrolet Express 3500
- 2009 Chevrolet Express 3500
- 2010 Chevrolet Express 3500
- 2003 GMC Savana 2500
- 2004 GMC Savana 2500
- 2005 GMC Savana 2500
- 2006 GMC Savana 2500
- 2007 GMC Savana 2500
- 2008 GMC Savana 2500
- 2009 GMC Savana 2500
- 2010 GMC Savana 2500
- 2003 GMC Savana 3500
- 2004 GMC Savana 3500
- 2005 GMC Savana 3500
- 2006 GMC Savana 3500
- 2007 GMC Savana 3500
- 2008 GMC Savana 3500
- 2009 GMC Savana 3500
- 2010 GMC Savana 3500
- 2011 Chevrolet Express 2500
- 2011 Chevrolet Express 3500
- 2011 GMC Savana 2500
- 2011 GMC Savana 3500
- 2012 Chevrolet Express 2500
- 2012 Chevrolet Express 3500
- 2012 GMC Savana 2500
- 2012 GMC Savana 3500
- 2009 Chevrolet Express 4500
- 2010 Chevrolet Express 4500
- 2011 Chevrolet Express 4500
- 2012 Chevrolet Express 4500
- 2009 GMC Savana 4500
- 2010 GMC Savana 4500
- 2011 GMC Savana 4500
- 2012 GMC Savana 4500
- 2013 Chevrolet Express 2500
- 2013 Chevrolet Express 3500
- 2013 GMC Savana 2500
- 2013 GMC Savana 3500
- 2013 Chevrolet Express 4500
- 2013 GMC Savana 4500
- 2014 Chevrolet Express 4500
- 2014 Chevrolet Express 2500
- 2014 Chevrolet Express 3500
- 2014 GMC Savana 4500
- 2014 GMC Savana 2500
- 2014 GMC Savana 3500
- 2015 Chevrolet Express 4500
- 2015 Chevrolet Express 2500
- 2015 Chevrolet Express 3500
- 2015 GMC Savana 4500
- 2015 GMC Savana 2500
- 2015 GMC Savana 3500
- 2016 Chevrolet Express 2500
- 2016 Chevrolet Express 3500
- 2016 Chevrolet Express 4500
- 2016 GMC Savana 3500
- 2016 GMC Savana 2500
- 2016 GMC Savana 4500
- 2017 Chevrolet Express 2500
- 2017 Chevrolet Express 3500
- 2017 GMC Savana 2500
- 2017 GMC Savana 3500
- 2018 Chevrolet Express 2500
- 2018 Chevrolet Express 3500
- 2018 GMC Savana 2500
- 2018 GMC Savana 3500
- 2017 Chevrolet Express 4500
- 2018 Chevrolet Express 4500
- 2019 Chevrolet Express 2500
- 2019 Chevrolet Express 3500
- 2019 GMC Savana 2500
- 2019 GMC Savana 3500
- 2017 GMC Savana 4500
- 2018 GMC Savana 4500
- 2019 Chevrolet Express 4500
- 2020 Chevrolet Express 2500
- 2020 Chevrolet Express 3500
- 2020 GMC Savana 2500
- 2020 GMC Savana 3500
- 2019 GMC Savana 4500
- 2020 Chevrolet Express 4500
- 2021 Chevrolet Express 2500
- 2021 Chevrolet Express 3500
- 2021 GMC Savana 2500
- 2021 GMC Savana 3500
- 2020 GMC Savana 4500
- 2021 Chevrolet Express 4500
- 2022 Chevrolet Express 2500
- 2022 Chevrolet Express 3500
- 2022 GMC Savana 2500
- 2022 GMC Savana 3500
- 2021 GMC Savana 4500
- 2022 Chevrolet Express 4500
- 2022 GMC Savana 4500
- 2023 Chevrolet Express 2500
- 2023 Chevrolet Express 3500
- 2023 GMC Savana 2500
- 2023 GMC Savana 3500
- 2023 Chevrolet Express 4500
- 2023 GMC Savana 4500
- 2024 Chevrolet Express 2500
- 2024 Chevrolet Express 3500
- 2024 GMC Savana 2500
- 2024 GMC Savana 3500
- 2024 Chevrolet Express 4500
- 2024 GMC Savana 4500
- 2025 Chevrolet Express 2500
- 2025 Chevrolet Express 3500
- 2025 GMC Savana 2500
- 2025 GMC Savana 3500
- 2025 Chevrolet Express 4500
- 2025 GMC Savana 4500
- 2026 Chevrolet Express 2500
- 2026 Chevrolet Express 3500
Package Contents & Exclusions
| Includes Dust Shield | No |
|---|---|
| Includes Hardware | Yes |
| Includes Boot | Yes |
Part Identification
| Brand | Bilstein |
|---|---|
| Manufacturer Part Number | 24-187435 |
Installation Notes
| Estimated Install Time (Hours) | 0.5 |
|---|
