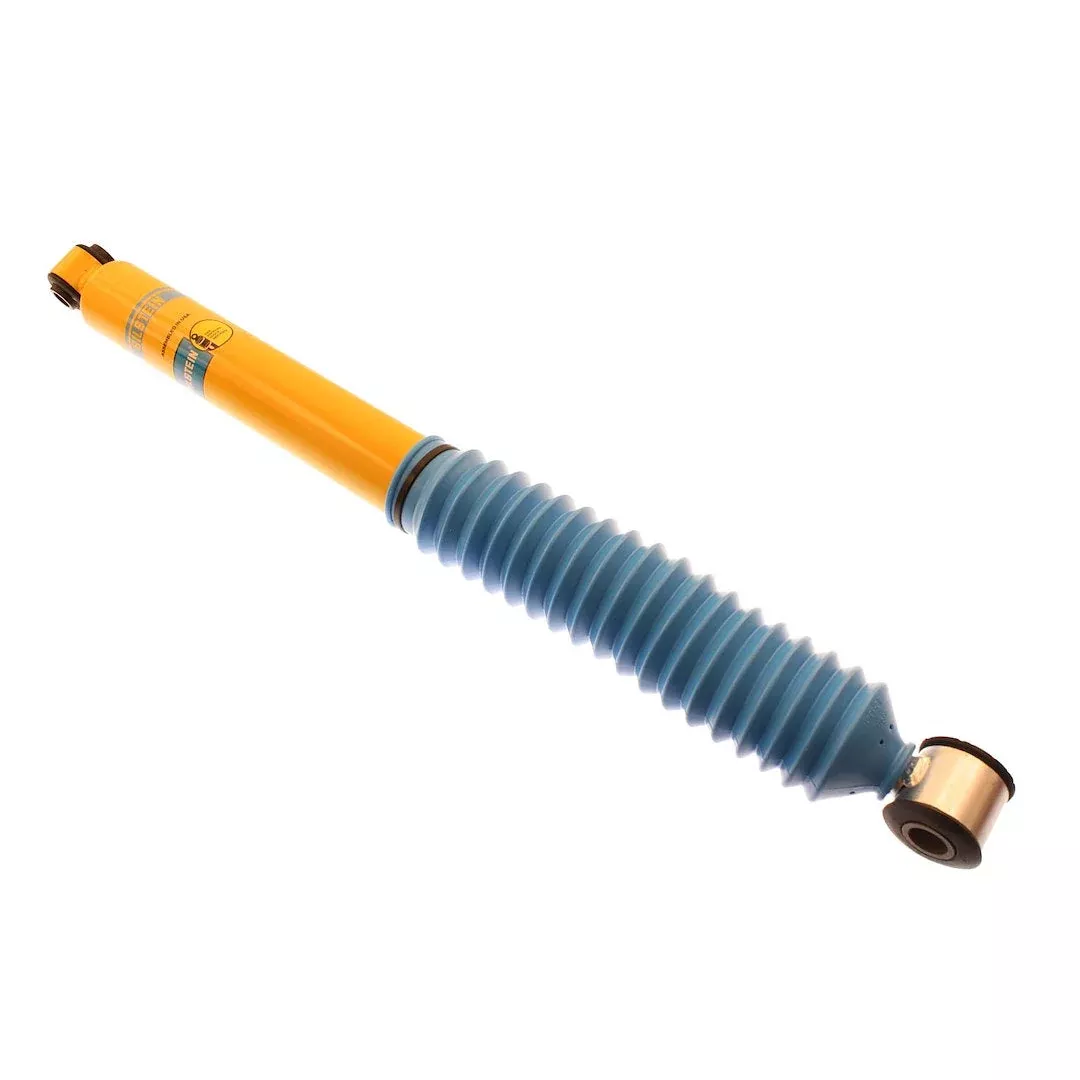

A nitrogen-gas-charged monotube shock absorber for the vehicle applications shown below — Bilstein part 33-025452.
- It measures 24.02 in extended and 15 in compressed, with eyelet upper and eyelet lower mounts.
- Supplied as a single shock, it should be matched to the required suspension position and fitment details.
Key Features
- Marked Improvement in Safety and Performance without Additional Spring Changes.
- Bilstein Gas Pressure Technology.
- Bilstein Monotube/Upside Down Technology.
- Road and Track Tested by Bilstein for Fine Tuning.
- Limited Lifetime Warranty.
- Bilstein B6 Heavy-Duty monotube gas pressure shocks and struts are the ideal choice for most vehicles, including full-size Sedans, SUVs and Trucks.
Specifications
| Type | Nitrogen Gas Charged |
|---|---|
| With Coil Spring | No |
| Internal Design | Monotube |
| Adjustable | No |
| Upper Mounting Style | Eyelet |
| Lower Mounting Style | Eyelet |
| Body Color | Yellow |
| Quantity | Single |
| Valving Type | Deflective Disc Valving |
| Rod Finish | Polished |
| Rod Material | Steel |
| Body Material | Steel |
| With Reservoir | No |
| Extended Length (IN) | 24.02 in |
| Compressed Length (IN) | 15 in |
| Rod Diameter (IN) | 1.81 in |
Package Contents & Exclusions
| Includes Dust Shield | No |
|---|---|
| Includes Hardware | No |
| Includes Boot | Yes |
Part Identification
| Brand | Bilstein |
|---|---|
| Manufacturer Part Number | 33-025452 |
Installation Notes
| Estimated Install Time (Hours) | 0.5 |
|---|
